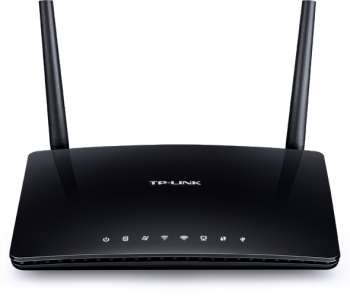

TP-LINK AC1200 router Archer D50

Seller :Lcdmaroc


TP-LINK AC1200 Wireless Dual Band ADSL2+ Modem Router Archer D50-1200MPS

SPÉCIFICATIONS MATÉRIELLES
Interface 1 10/100Mbps RJ45 WAN/LAN Port
3 10/100Mbps RJ45 LAN Ports
1 RJ11 Port
1 USB 2.0 Ports
Bouton 1 Power On/Off Button
1 Wi-Fi On/Off Button
1 WPS Button
1 RESET Button
Alimentation 12VDC/1.5A
Standards IEEE IEEE 802.3, 802.3u, 802.3ab
Standards ADSL Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1
Standards ADSL2 ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
Standards ADSL2+ ITU-T G.992.5
Dimensions (LxPxH) 8.0 x 5.6 x 1.3 in. (202mm x 141mm x 33.6mm)
Type d’antenne Undetachable dual band external antennas
Gain de l’antenne 2dBi for 2.4GHz and 3dBi for 5GHz



CARACTÉRISTIQUES WI-FI
Standards Wi-Fi IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
Vitesse Wi-Fi 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Fréquence 2.4GHz and 5GHz
Puissance de transmission <20dBm(EIRP)
Fonctions Wi-Fi Enable/Disable Wireless Radio, WDS Bridge,

WMM, Wireless Statistics

Sécurité Wi-Fi 64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption,
Wireless MAC Filtering

Planification Wi-Fi Support 2.4GHz and 5GHz Wireless Schedule



CARACTÉRISTIQUES LOGICIELLES
Qualité de Service QoS ATM QoS, Bandwidth Control
Sécurité NAT Firewall, Access Control, MAC / IP / URL

Filtering,
Denial of Service (DoS), SYN Flooding,

Ping of Death
IP and MAC Address Binding

IPv6 IPv6 and IPv4 dual stack
Modes opératoires ADSL Modem Router, Wireless Router
Administration Web Based Configuration(HTTP), Remote

management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based

Firmware Upgrade,
Diagnostic Tools

DHCP Server, Client, DHCP Client List,
Address Reservation, DHCP relay
Redirection de port Virtual server, Port Triggering, DMZ, ALG,

UPnP

DNS dynamique DynDns, NO-IP
VPN PPTP, L2TP, IPSec Passthrough
Caractéristiques ATM ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs
Fonctions avancées Parental Control
Network Address Translation (NAT);
Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP V1/V2/V3

Partage USB Support Samba(Storage)/FTP Server/Media

Server/
Printer Server

Réseau invité 2.4GHz guest network × 1
5GHz guest network × 1
VPN IPsec Supports up to 10 IPSec VPN tunnels



AUTRES
Certification CE, FCC, RoHS
Contenu de l’emballage AC1200 Wireless Dual Band ADSL2+ Modem

Router
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter

Système requis Windows 10/8/7/Vista/XP or Mac OS or

Linux-based
operating system

Environnement Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
